GT-5301™

Description[±]

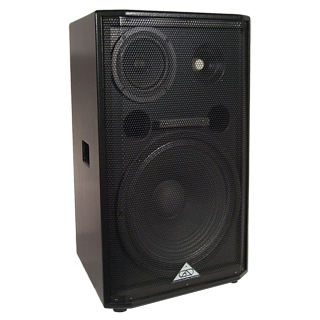

The GAD GT-5301™ is a three-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-5301™ is available with optional 3/8"-16 threaded mounting points which permits safe, load-rated suspension in permanent installations.

Application[±]

The GT-5301™ is designed for near field / far field applications where a smooth, dynamic range is needed. The GT-5301™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-5301™ boasts a wide-range dispersion for portable A/V events or even for side fill or delay monitoring applications.

Specifications[±]

Power Handling (RMS):

350 Watts

Max Output (1W @ 1M):

130 dB SPL

Frequency Response:

40 Hz - 19.5 kHz

Sensitivity (1W @ 1M):

99 dB SPL

Nominal Impedance:

8 ohms

Horn:

58-033

Dispersion:

Horizontal 90°

Vertical 90°

Components:



Low Frequency Driver

15" Cone

Magnet Material

Ferrite

Cone Material

Weather-Treated paper

Components:



Medium Frequency Driver

6" Cone

Components:



High Frequency Driver

1" Compression Driver

High Frequency Horn

Plane Wave

Horn Material

13-Ply Birch

Crossover Type:

Passive

Crossover Frequency:

400 / 2.2 kHz

Enclosure Type:

Trapezoidal 15°

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Textured Black

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon®

Product Dimensions:

(inches)

H - 28.75" W - 18.50" D - 18.50"

(millimeters)

H - 730.25 W - 469.90 D - 469.90

Product Weight:

60.0 Lbs / 27.0 Kgs

Available Finish Options [±]

GT-5301-6F

With Six 2 x 2 Fly Points

GT-5301-HP

With handles and pole mount
