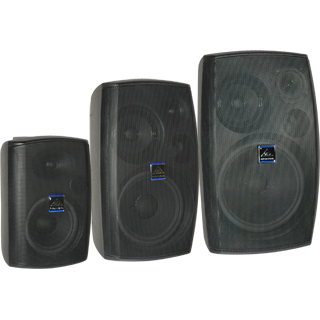

VIP Series

The Grund Audio Design VIP Series sets a new standard for 3-way speakers. Its design provides the user multiple applications and plenty of power handling capability in a compact, three-way, cabinet design. These full-range loudspeakers are ideal for applications requiring high quality sound with detailed definition. The box design allows vocal optimizing and full music power capability.

The versatile VIP Series may be used in a wide-variety of commercial applications: conference rooms, dance studios, educational facilities, lounges, digital jukebox playback systems, house of worship, karaoke systems, and restaurants.

  • Large voice coils on the low frequency
  • Mid-range with 1" coils, quasi horn loaded
  • High frequency has 1" coils
  • Multi mounting points on the back
  • Comes in mirror imaged pairs
  • Name badges rotate for vertical or horizontal positioning
  • High power capabilities
  • Highest sensitivity of SPL in its class
  • Sleek, modern design and appearance
  • Steel, matte black, powder-coated grilles

Expand Details

Model
Number
Drivers Frequency
Response
Sensitivity Watt /
ohm
Dispersion
H / V
Dimensions
H x W x D
VIP-06 LF: 6.5" Cone
HF: 1" Dome Tweeter
68 Hz - 20 kHz 90 dB SPL 60 / 8 Ω 12.25 x 8.13 x 8.25
VIP-08 LF: 8" Cone
MF: 5" Cone
HF: 1" Dome Tweeter
45 Hz - 18 kHz 95 dB SPL 120 / 8 Ω 15.70 x 10.00 x 10.00
VIP-10 LF: 10" Cone
MF: 5" Cone
HF: 1" Dome Tweeter
40 Hz - 18 kHz 97 dB SPL 200 / 8 Ω 19.50 x 12.25 x 11.00
VIP-12 LF: 12" Cone
MF: 5" Cone
HF: 1" Dome Tweeter
38 Hz - 18 kHz 98 dB SPL 250 / 8 Ω 20.50 x 13.25 x 11.88
VIP-12S-200 LF: 12" Cone 45 Hz - 250 Hz 93 dB SPL 250 / 8 Ω 13.78 x 20.08 x 16.14
VIP-15S-350 LF: 15" Cone 45 Hz - 250 Hz 95 dB SPL 400 / 8 Ω 17.72 x 27.17 x 20.67
