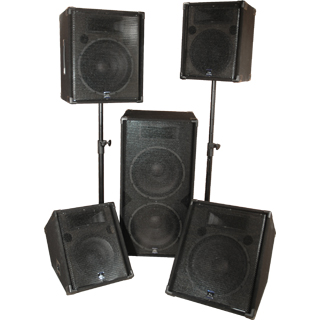

XT Series

Performance at a great price!

Attention: musicians, artists, performers, houses of worship, DJ's - do you want a great performing loudspeaker without breaking the bank? The new XT Series of loudspeakers and monitors are available from Grund Audio Design.

Each model includes a high performance, true 1" compression driver with a replaceable diaphragm. The crossover network is a 2nd order design to help eliminate feedback and allow peak performance from the components. The woofers are designed and tested to deliver high performance.

All models are equipped with the GAD Infinity™ high frequency protection circuit. This circuit protects your high frequency driver from excessive DC current that is produced by distortion or overdriving the system. Instead of damaging your components, the Infinity™ circuit will help protect your investment for the long haul. Black carpet finish is standard on all XT Series models.

GAD XT SERIES - Designed by musicians, for musicians.

Model
Number Drivers Frequency
Response Sensitivity Watt /
ohm Dispersion
H / V Dimensions
H x W x D

XT-12M LF: 12" Cone
HF: 1" Compression Driver 55 Hz - 19 kHz 101 dB SPL 150 / 8 Ω 90° / 40° 20.75 x 17.00 x 15.00

XT-12T LF: 12" Cone
HF: 1" Compression Driver 55 Hz - 19 kHz 101 dB SPL 150 / 8 Ω 90° / 40° 20.75 x 17.00 x 15.00

XT-15M LF: 15" Cone
HF: 1" Compression Driver 52 Hz - 19 kHz 100 dB SPL 200 / 8 Ω 90° / 40° 24.50 x 20.75 x 16.63

XT-15S LF: 15" Cone 50 Hz - 500 Hz 100 dB SPL 200 / 8 Ω Omni-Directional 24.50 x 20.75 x 16.63

XT-15T LF: 15" Cone
HF: 1" Compression Driver 50 Hz - 19 kHz 100 dB SPL 200 / 8 Ω 90° / 40° 24.50 x 20.75 x 16.63

XT-18S LF: 18" Cone 45 Hz - 500 Hz 100 dB SPL 450 / 8 Ω Omni-Directional 24.50 x 20.75 x 24.50

XT-30T LF: 2 x 15" Cone
HF: 1" Compression Driver 40 Hz - 19 kHz 102 dB SPL 300 / 4 Ω 90° / 40° 40.50 x 20.75 x 16.63

Model Number	Drivers	Frequency Response	Sensitivity	Watt / ohm	Dispersion H / V	Dimensions H x W x D
XT-12M	LF: 12" Cone HF: 1" Compression Driver	55 Hz - 19 kHz	101 dB SPL	150 / 8 Ω	90° / 40°	20.75 x 17.00 x 15.00
XT-12T	LF: 12" Cone HF: 1" Compression Driver	55 Hz - 19 kHz	101 dB SPL	150 / 8 Ω	90° / 40°	20.75 x 17.00 x 15.00
XT-15M	LF: 15" Cone HF: 1" Compression Driver	52 Hz - 19 kHz	100 dB SPL	200 / 8 Ω	90° / 40°	24.50 x 20.75 x 16.63
XT-15S	LF: 15" Cone	50 Hz - 500 Hz	100 dB SPL	200 / 8 Ω	Omni-Directional	24.50 x 20.75 x 16.63
XT-15T	LF: 15" Cone HF: 1" Compression Driver	50 Hz - 19 kHz	100 dB SPL	200 / 8 Ω	90° / 40°	24.50 x 20.75 x 16.63
XT-18S	LF: 18" Cone	45 Hz - 500 Hz	100 dB SPL	450 / 8 Ω	Omni-Directional	24.50 x 20.75 x 24.50
XT-30T	LF: 2 x 15" Cone HF: 1" Compression Driver	40 Hz - 19 kHz	102 dB SPL	300 / 4 Ω	90° / 40°	40.50 x 20.75 x 16.63
