Available Finishes | ||
|---|---|---|
| Item # : |  | |
T2-DC002CBUPC :839077004969 | ||
Black Laminate - Textured ABS Plastic Surface on Plywood. (Meets A.T.A. Specifications) | ||
| Item # : |  | |
T2-DC002CGUPC :839077004969 | ||
Gray Laminate - Textured ABS Plastic Surface on Plywood. (Meets A.T.A. Specifications) | ||
| Item # : |  | |
T2-DC002CLUPC :839077004969 | ||
Blue Laminate - Textured ABS Plastic Surface on Plywood. (Meets A.T.A. Specifications) | ||
| Item # : |  | |
T2-DC002CRUPC :839077004969 | ||
Red Laminate - Textured ABS Plastic Surface on Plywood. (Meets A.T.A. Specifications) | ||
T2-DC002C™
Description [±]
NEW DESIGN!!!

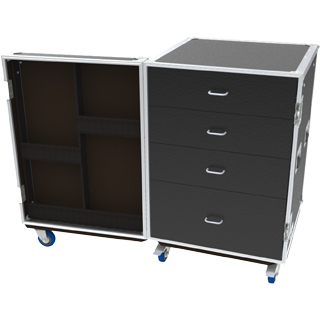

The newly designed Grundorf T2-DC002C Drawer Case is a perfect storage solution for your touring and production gear.
The T2-DC002C Drawer Cases are constructed with 1/2" multi-layer plywood with a durable ABS laminate finish. The edges are finished with double edged aluminum extrusion. The lid-to-body seal is made with an interlocking aluminum tongue and groove valance system to provide a tight seal. We use 9 rivet point recessed handles and 14 rivet point recessed catches to provide the strength needed for years of wear-and-tear. The handles and catches all use a steel washer backed rivet system for greater durability. The four drawers slide smoothly on the sturdy steel drawer glides and are equipped with a painted interior finish.
The inside dimensions of the top three drawers are H - 5.31" W - 16.13" D - 19.25". The inside dimensions of the bottom drawer are H - 9.44" W - 16.13" D - 19.25".
Large 4" casters with two brakes are standard. Optional recessed key locks are available for added security. You also get to choose a finish color: black, gray, blue, or red.
Need something a little different? The Grundorf Tour 2 Series drawer cases are easily modified and may be custom built to your specifications.
Specifications[±]
Product Dimensions: | |
(inches) | H -35.63" W -21.44" D -27.06" |
(millimeters) | H -905.00 W -544.58 D -687.32 |
Replacment Parts List [±]
4 x - 31-025 - Handle - 3" Drawer Pull
3 x - 33-006 - Hinge - Piano, 6"
8 x - 44-010 - Drawer Glides - 20"/85# Capaci
8 x - 32-008 - Corner-ball/zinc
2 x - 34-014 - Catch - Recessed W/offset/zinc
8 x - 35-008 - Clamp - Large/offset
3 x - 37-022 - Caster - 4" Blue Swivel
2 x - 37-023 - Caster - 4'' Swivel' Large With Brake
Available Options [±]
 | 2-LOC |
|---|---|
Key-Locking Recessed Catch Replaces Medium Recessed Latch | |
 | TBS |
Two Folding Small Wishbone Legs #43-001 Installed in Front Cover Minimum Dimensions for Install H-31" x W-19" | |
 | TLS |
One Wishbone Table Leg #43-001 Install Inside Rear Cover of 18 Space or Larger Rack | |
 | UPFC |
Upgrade from included 4" Casters to 6" Field Casters | |
